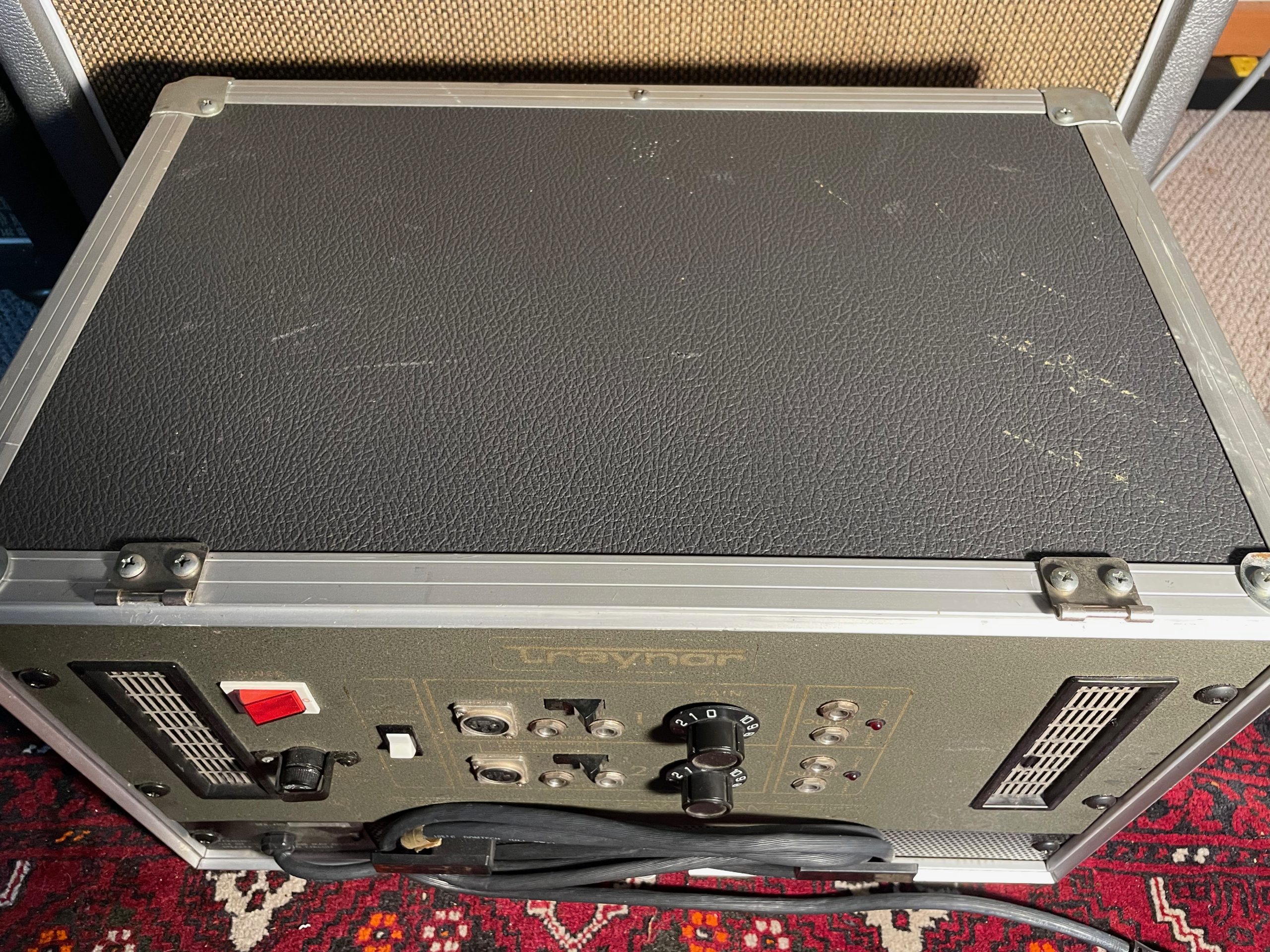

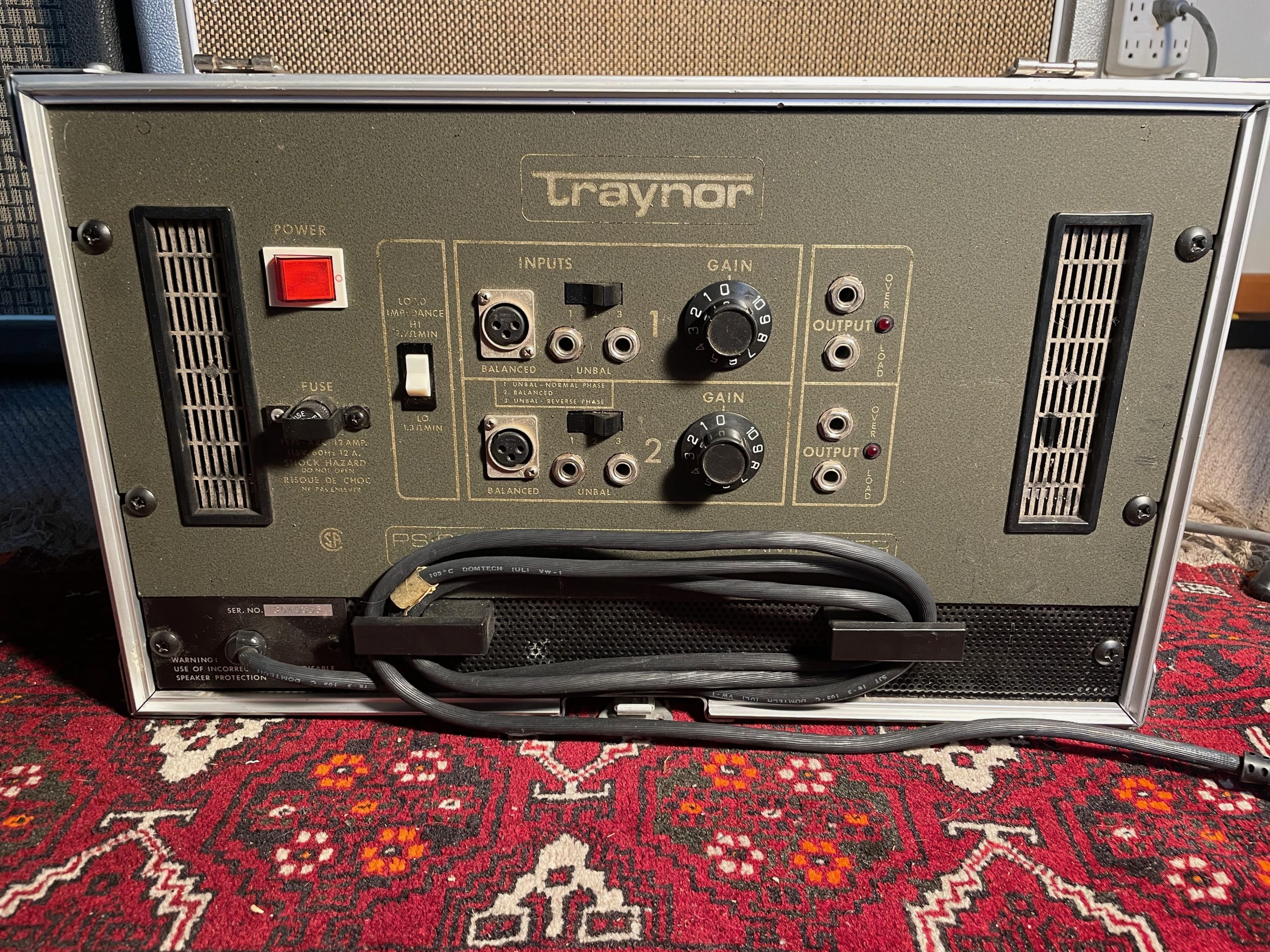

Vintage Traynor PS600 – Stereo Power Amplifier – Bass / Guitar / PA

We are Eclectic Sounds / aka: eclsounds – a store front in Portland, Or. We are open 7 days a week from 11 – 5 PST (by appointment)

600 watt (300 watts per channel) solid state power amp from the 1970’s.  Makes a great bass amp, clean guitar amp, or PA amplifier.





R.M.S. Power Output Per Channel:

Hi Impedance:

190 watts @ 8 ohms

300 watts @ 4 ohms

425 watts @ 2.7 ohms

Low Impedance:

200 watts @ 4 ohms

300 watts @ 2 ohms

390 watts @ 1.3 ohms

Input Impedance – unbalanced 5k (gain control at 0) to 50k (gain control maximum).  Balanced 10k to 40k.

Input Sensitivity- 1.0 VRMS unbalanced, 0.5 VRMS balanced.

Protective Circuits- Unconditional tolerance to reactive and shorted loads.  Thermal sense/shytdown on heat-sink of both channels.  SCR crow-bar protection against output DC signals.

Power Consumption- 117VAC 60Hz.  12 Amperes. (full load on both channels)





( Due to people taking advantage of eBay / Reverb return policies; wanting to “try out and/or pilfer parts”  we can no longer take returns on used gear unless it arrives damaged. Sorry for this inconvenience. We test and guarantee all gear to be 100% working unless stated otherwise )

Come play this gear in our shop!
